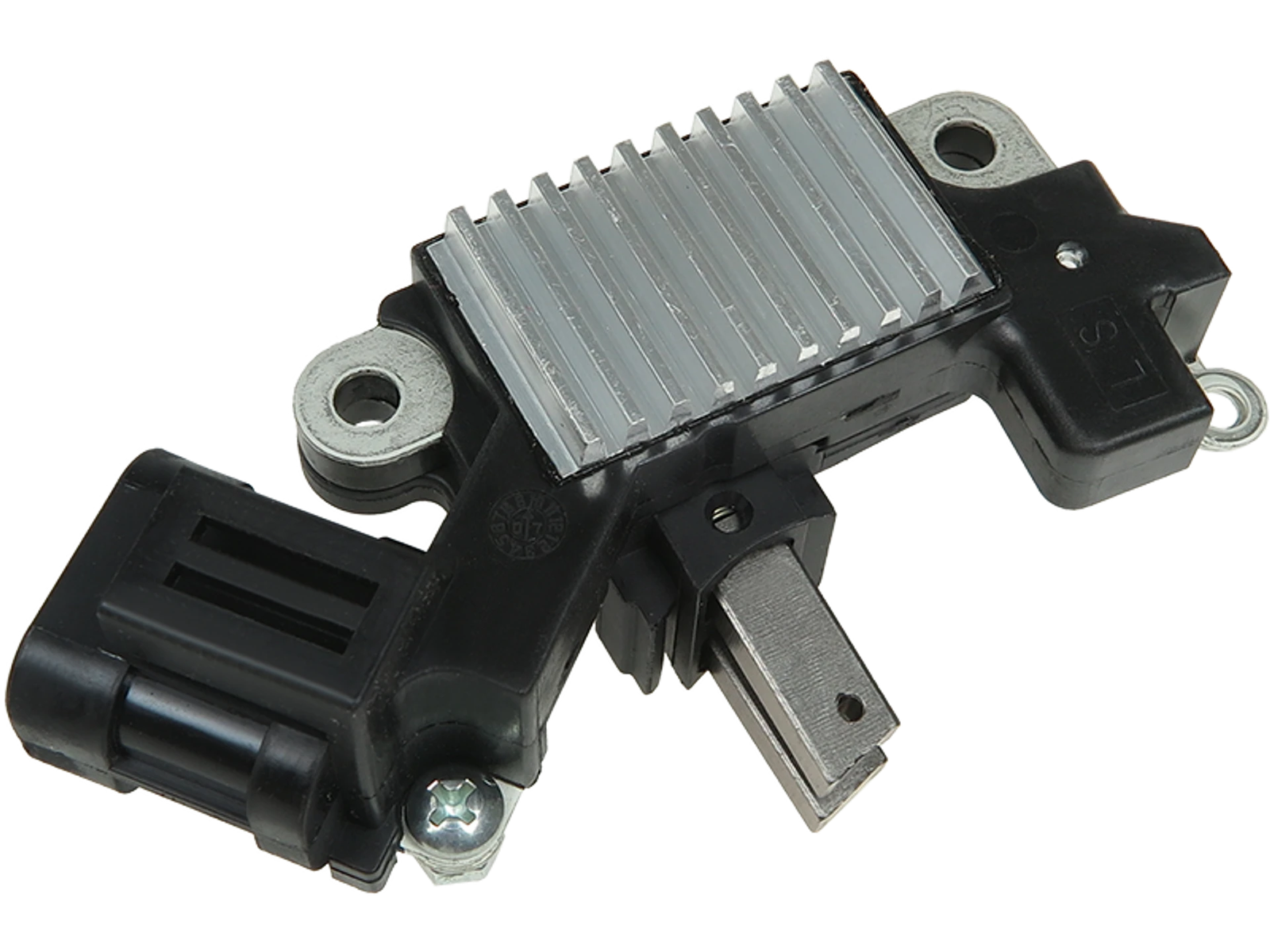

Regulador

Detalle técnico

Descripción

Marca TANNA

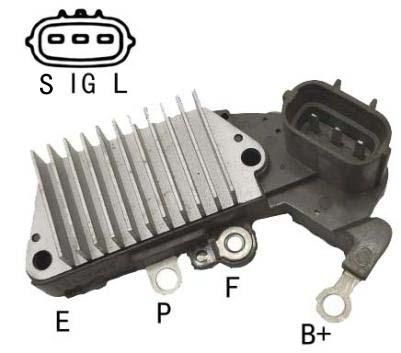

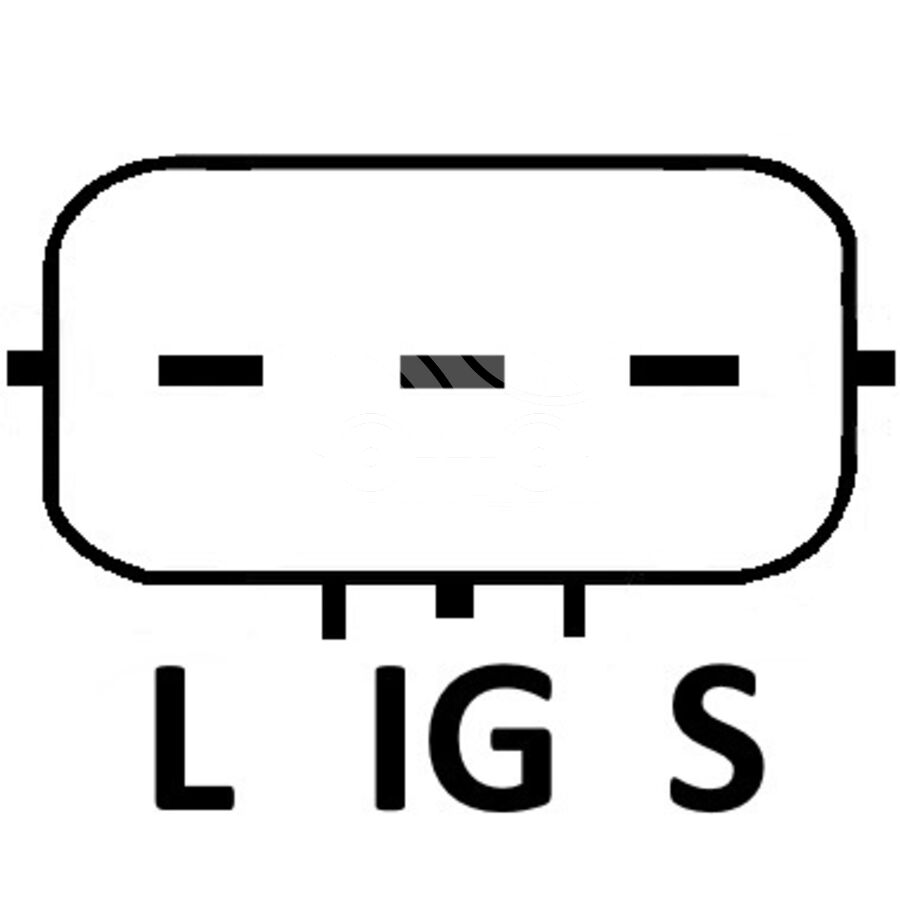

Tipo de terminal L-IG-S
Tipo de Circuito A
Tipo de alimentación Estator
Distancia entre los orificios de montaje (de centro a centro) 63,5 mm

Carga 135737
Denso 1260001520, 1260001521, 1260001730, 1260001750, 1260001930, 1260002250
Ghibaudi RTR8062, RTR8151
Ika 163071
KRAUF ARN6437AD , ARN6437LP , ARN6437UT , ARN9437AD
Magneti Marelli AMP0851
Mobiletron VRH200530A, VRH200545A
SJ WN437
SOL SQNPR437
Toyota 2770011070, 2770050050, 2770066040, 2770075020
Transporte IN437, IN437HD
Unipunto YR656, YR656H, YR656P
UTM RN2467A , RN6437A
WPS 358235

Transpo: IN437/IN437HD
Unipoint: YR656H/YR656P
Ika:163071
Magneti Marelli: AMP0851
WAI :358235
Yunyi: S03-021/13321500
New-Era:IVR523/IVR529
Denso: 1260001520/1260001521/1260001730/1260001750/
1260001930/1260002250
AS: ARE6013
Cargo: 135737
Toyota: 2770011070/2770050050/2770066040/2770075020
Mobiletron: VRH200530A/VRH200545A
UTM: RN6437A

LEXUS LX 450 4,5 [1FZ-FE] 01,1996-01,1997 TOYOTA Land Cruiser 4,5 [1FZ-FE] 01,1993-01,1995 TOYOTA Land Cruiser 4,5 [1FZ-FE] 01,1996-01,1997 OYOTA Corolla 1,3 16V XLi (EE101)[4E-FE] 07.1992-04.1997 TOYOTA Corolla 1.3 XLi (E10)[4E-FE] 05.1995-04.1997 TOYOTA Corolla 1.3 XLi (EE101)[4E-FE] 07.1992-04.1997 TOYOTA Corolla 1.4 [4E-FE] 04,1997-10,1999 TOYOTA Corolla 1,4 16V GLi (EE101)[4E-FE] 07,1992-04,1997 TOYOTA Corolla 1,4 16V XLi (EE101)[4E-FE] 07,1992-04,1997 TOYOTA Corolla 1,8 16V 4WD (E10)[7A-FE] 09.1995-04.1997 TOYOTA Paseo 1.5 16V (EL54)[5E-FE] 10.1996-03.1999 TOYOTA Paseo 1.5 16V [5E-FE] 08.1995-07.1999 EN TOYOTA Starlet 1.3 [4E-FE] 01,1996-03,1999 TOYOTA Starlet 1,3 12V (EP81)[2E-E] 12,1992-01,1996 TOYOTA Carina E 1,6 (AT190)[4A-FE] 02,1992-09,1997 TOYOTA Carina E 1,6 16V (AT190)[4A-FE] 08,1993-09,1997 TOYOTA Carina E 1,6 16V (CT190)[4A-FE] 12,1992-09,1997 TOYOTA Carina E 1,6 GLi (AT190)[4A-FE] 02,1992-09,1997 TOYOTA Carina E 1,6 GLi (ST191)[4A-FE] 01,1993-09,1997 TOYOTA Carina E 1,6 i (AT190)[4A-FE] 02,1995-09,1997 TOYOTA Carina E 1,8 (AT191)[7A-FE] 01,1995-09,1997 TOYOTA Carina E 1,8 i (AT191)[7A-FE] 02,1995-07,1997 TOYOTA Celica 1,8 i 16V [7A-FE] 11,1993-11,1999 TOYOTA Corolla 1,6 [4A-FE] 04,1997-10,1999 TOYOTA Corolla 1,6 GLi (AE101)[4A-FE] 05,1992-04,1997 TOYOTA Corolla 1,6 Si (AE101)[4A-FE] 05,1992-04,1997 TOYOTA Corolla 1,6 Si (E10)[4A-FE] 05,1992-04,1997 AT TOYOTA Corolla 1,8 4WD [7A-FE] 04,1997-07,2001

1012110120 , 1012110190 , 1012110200 , 1012110201 , 1012110340 , 1012110341 , 1012110350 , 1012110431 , 1012110432 , 1012110520 , 1012110521 , 1012110522 , 1012110530 , 1012110531 , 1012115150 , 1012115270 , 1012117000 , 1012117320 , 1012117860 , 1022112830 , 2706073050 , 2706075040 , A6009 , A6012 , ALN0976UX , ALN0988WA , ALN1367LP , ALN1535BS , ALN1535LK , ALN1535MQ , ALN1535UX , ALN1535ZD , ALN3078BS , ALN3078GB , ALN3078MQ , ALN3078UX , ALN3078WA , ALN3083MQ , ALN3083UX , ALN3093LK , ALN3093UX , ALN3255BS , ALN3861BS , ALN3861US , ALN3861YJ ALN5029LP , ALN7000BS , ALN7000DD , ALN7000UX , ALN7000YX , ALN9008BS , ALN9976UX

Compatibilidad: LEXUS (1996-1997); TOYOTA (1993-1999); TOYOTA - EUROPA (1992-1999)
ESPECIFICACIONES :
12 voltios, circuito A, terminales S-IG-L, 14,5 Vset, 5 segundos LRC
ESPECIFICACIONES PARA :
Alternadores Denso IR/IF
Fabricante :
DENSO
DIMENSIÓN 1 :
Longitud de montaje: 63,5 mm
NOTA 1 :
Función de lámpara activa - con salida.
Número de pieza del fabricante original:
Denso126000-1730, 126000-1750, 126000-1930, 126000-2250, Toyota 27700-11070, 27700-11080, 27700-660

Categoría: Reguladores
